Fieldbus Foundation Density Transmitter

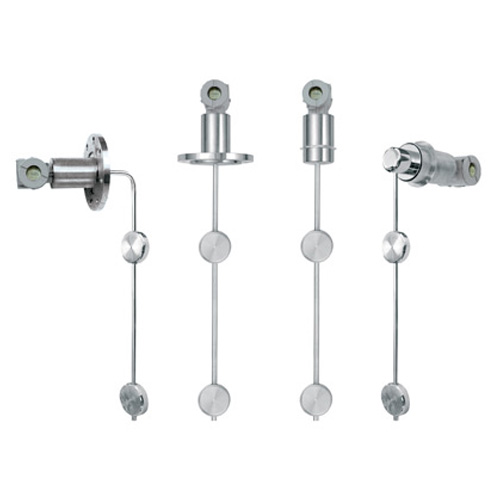

The Foundation DT302 Fieldbus Density Transmitter (Touché) is an equipment intended for continuous measurement of liquid Density, directly in industrial processes. The DT302 consists of a probe with two repeating diaphragms that are immersed in the process fluid.

A temperature sensor inside the probe located between the two repeater diaphragms automatically compensates for any variation in process temperature. Special care in the manufacture and assembly of the probe and the temperature sensor means that small variations in the process temperature are quickly informed to the transmitter, which, through a dedicated software, accurately calculates the value of the process fluid density and/or concentration. According to the industrial process, the concentration measured by DT302 can be expressed in Density, Relative Density, Brix Degree, Baumé Degree, INPM Degree, Plato Degree, % Solids, etc.

The DT302 uses the Fieldbus Foundation digital communication protocol.

Input	Range 1: 0.5 a 1.8 g/cm³ Range 2: 1.0 a 2.5 g/cm³ Range 3: 2.0 a 5.0 g/cm³
Exit	Digital only. Fieldbus voltage mode 31.25 Kbit/s with bus power.
Precision	Range 1: ±0.0004 g/cm³ (±0.1 °Bx) Range 2: ±0.0007 g/cm³ Range 3: ±0.0016 g/cm³
Food	9-32 V DC bus voltage source.
Function Blocks	Up to 20 dynamically instantiable Function Blocks. Click here for the list of Available Function Blocks. Function Blocks allow the implementation of simple or complex control strategies in the field device, making it an integral part of the control system. To fully enjoy the benefits of Function Blocks in the field device, it is recommended to use a true Fieldbus Foundation System. For more information about SYSTEM302, click here.
Recommendation	4 ½ - digits and 5 alphanumeric characters (Liquid Crystal) indicator.
Diaphragm	316 SS or Hastelloy
Temperature Limits	Environment: -40 to 85 °C (-40 to 185 °F) Process: -20 to +150ºC (-4 to 302ºF)
Static Pressure Limit	70 kgf/cm² (7MPa) (1015 PSI)
Humidity Limit	0 to 100% RH
Process Connection	Industrial Model: Stainless Steel Flange 316 ANSI B16.5 Sanitary Model: Tri-clamp Stainless Steel 304
Hazardous Area Certification	Explosion proof, weather proof and intrinsically safe, CENELEC and FM standard (pending).
Mounting	straight or curved
Weight	Sanitary Model: 4.5 kg (10 lb) - Industrial Model: 8 kg (18 lb)
