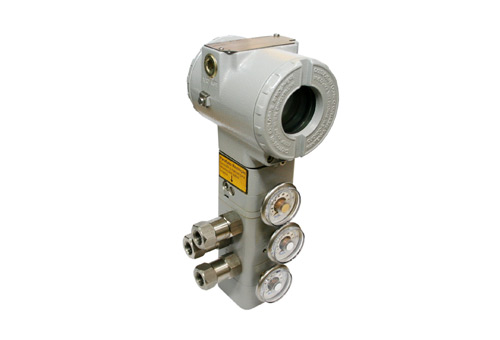

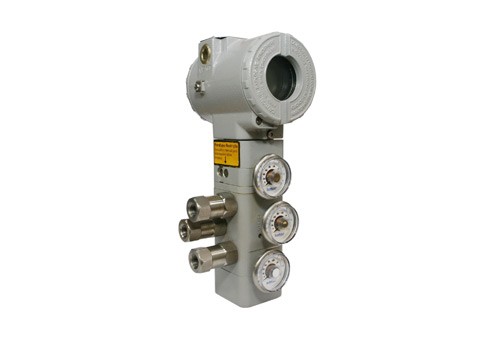

Foundation Fieldbus Valve Positioner

The FY302 is from the first generation of Fieldbus devices. It is a control valve positioner for pneumatic valve in a Fieldbus system. The FY302 produces a pressure output as required to position a control valve according to an input received over the Fieldbus network or internal controller.

The Fieldbus technology used in the FY302 enables, an easy interface between the field and the control room and several interesting features that considerably reduce the installation, operation and maintenance costs.

Communication	Digital only, Foundation Fieldbus, 31.25 kbit/s voltage mode with bus power
Output	Output to actuator 0-100% supply air pressure. Single or double-action.
Output Capacity	13.6 Nm³/h (8 SCFM) at 5.6 bar (80 psi) supply
Power Supply	Bus powered: 9-32 Vdc
Power Consumption	Quiescent 12 mA
Configuration	Through fieldbus communication from a PC or by local switches
Pressure Supply	1.4-7 bar (20-100 psi). Free of oil, dust and water
Actual Position Sensing	Magnet (Non-contact) via Hall effect
Function Blocks	Up to 20 Dynamically Instantiable Function Blocks. Click here for the list of available Function Blocks The Function Blocks available allow simple and complex control strategies to be placed inside the field device, making the field device an integral part of the control system. In order to fully benefit from the Function Blocks in the device a True Foundation Fieldbus system is recommended. For more information about SYSTEM302, click here.
Indication	Optional LCD indicator
Material	Injected low copper aluminum with polyester painting or 316 stainless steel housing
Process Temperature Limits	-40 to 85ºC (-40 to 185 ºF)
Ambient Humidity Limits	0 to100 % RH
Hazardous Area Certification	Explosion proof, weather proof and intrinsically safe
Weight	Nominal: 2.7 kg; Digital display adds: 0.1 kg.
